The LYYN Inside™ solution for analog PAL/NTSC video

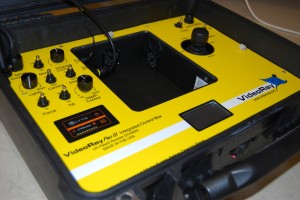

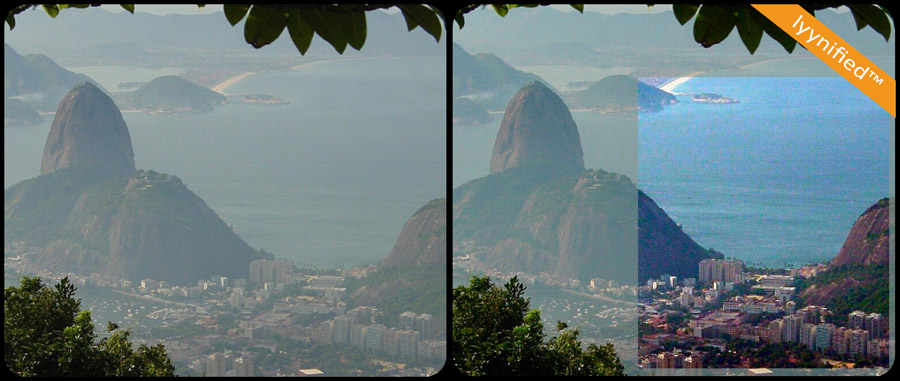

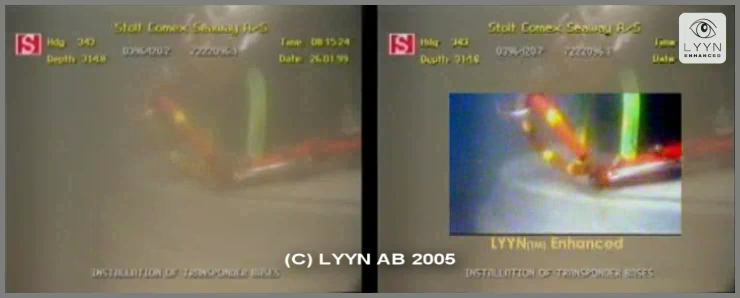

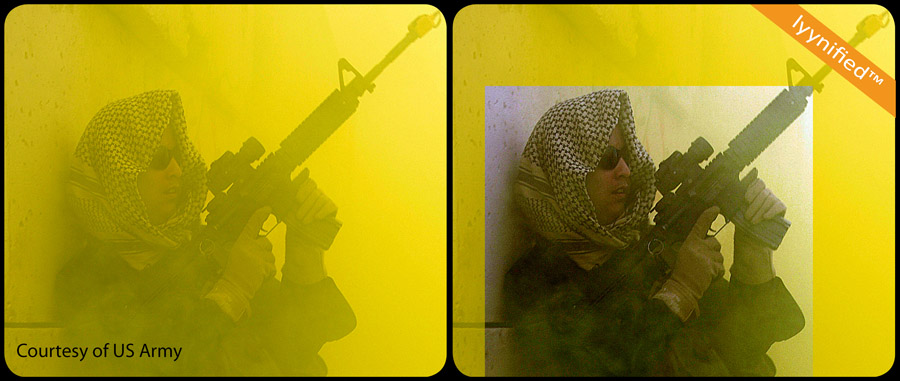

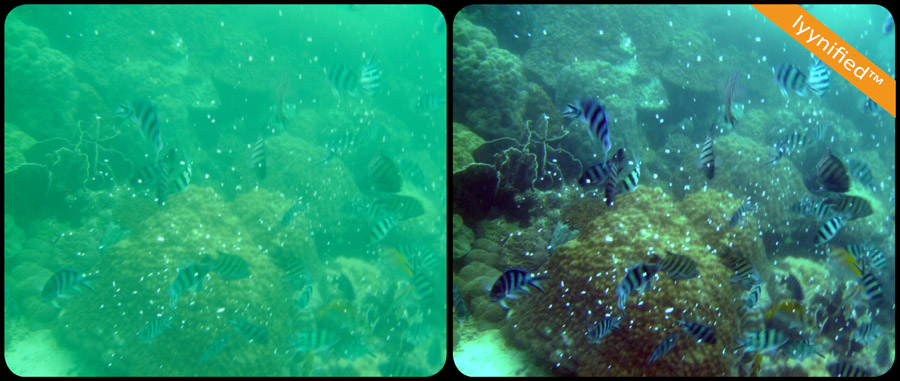

Each video frame is optimized for contrast and color spectrum to make it as “natural” as possible to the human eye. Even the smallest fragments of color and object shape can be extracted from the camera sensor. And all this is done in real-time.
The result is an image that constantly self-adjusts to the environment, and you can focus on mission objectives.
The kit contains all the necessary parts for simple plug-and-play integration. You connect your video either to the board’s micro connectors or to the included standard BNC connector card. The board can be controlled by the manual control panel included or by software over a standard RS232/485 serial interface.
Standard control panel for manual control

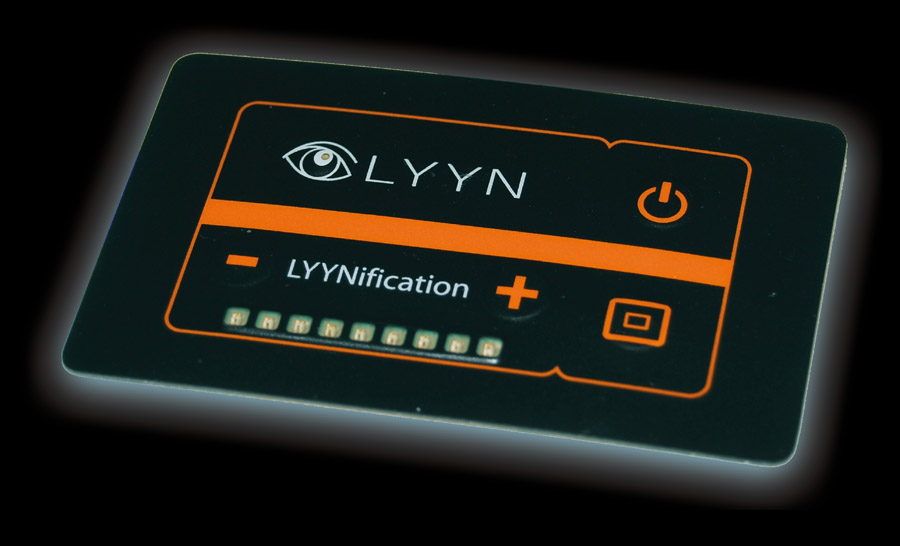

A thin “membrane” panel is included, which can be mounted and sealed to a flat surface with the adhesive backing. If the application requires a watertight seal LYYN recommends extra mechanical mounting. The panel is connected to the LYYN Hawk Board with a flat cable (included).
User controls on control panel
• lyynification: level, window position, window size
• inverted selection window toggle on/off
The Hawk Board can be controlled remotely through a standard RS232/485 serial interface over a flat cable connector. A simple standard communications program, like “HyperTerminal” in Windows or “QuickTerm” in Mac OS X, can be used to send ASCII text-based commands. You can also write scripts and software on your own control platform for a more integrated solution.
PAL 625-line 25 fps or NTSC 525-line 30 fps, autosensing of format. Standard composite or S-video (separate luminance and chrominance).
The LYYN Hawk Board has three video synchronization modes:
- the video output can be synchronized to the video input
- an external synchronization signal on a separate micro connector can be used
- an Time Based Corrected signal can be obtained by controlling the delay
Video I/O: Hirose microconnectors. Separate video connector board with standard BNC connectors and cables included External sync signal: Hirose microconnector Two control ports, one for the control panel included and one for software control through an RS interface.
- RS232/485 serial protocol
- ASCII text-based commands
- Flat cable connector
Available lyynification™ settings
- window position
- window size
- inverted selection window toggle on/off
Other video settings
Nominal input voltage: 12 V DC, 0.2 A.
Temperature: 0 — 50 °C (32 — 122 °F)
Humidity: 0 — 80% RH (non-condensing)
Dimensions and weight
Hawk Board: 96 mm x 80 mm x 30 mm
Weight: 150 g
Mounting holes: 4 x M3
Control panel: 80 mm x 50 mm x 1 mm
